| Horsepower | 20.1 HP |
| Transmission | HST- 2 Range |
| 3-Point Hitch Lift Capacity | 770 lbs |
| Loader lift capacity | 793 lbs |
| Horsepower | 25.3 HP |
| Transmission | HST- 2 Range |
| 3-Point Hitch Lift Capacity | 770 lbs |
| Loader lift capacity | 793 lbs |

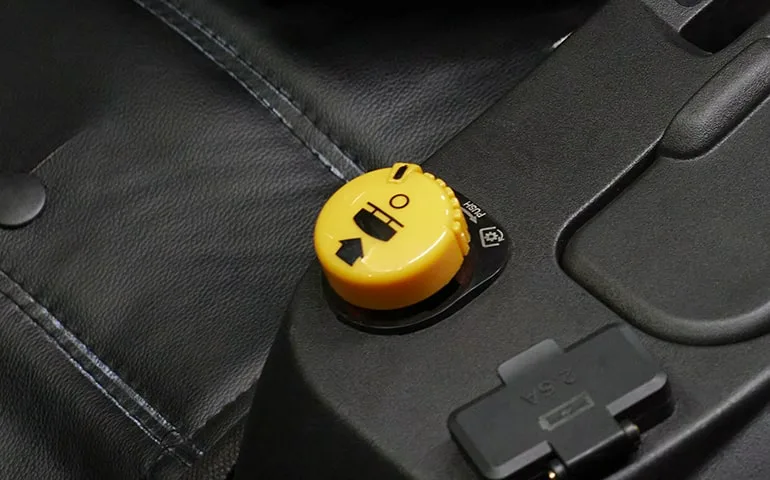

Electronic PTO engagement for your mid and rear implements is ideal for those with arthritis and is designed to prevent accidental activation, improving operator safety.

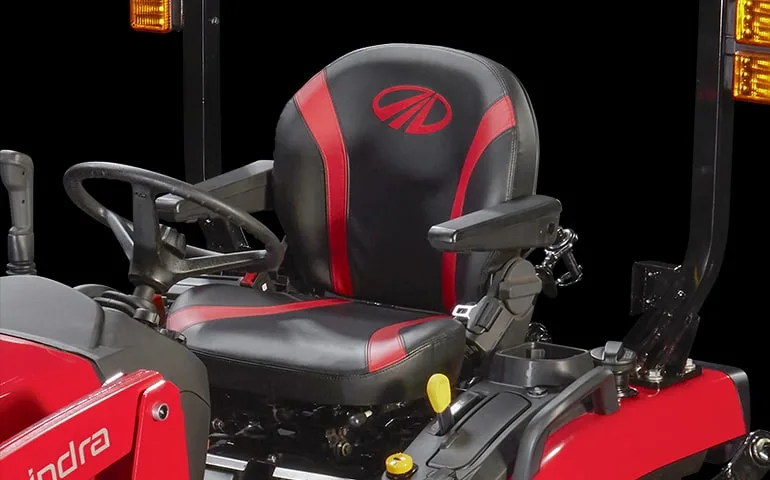

Try sitting on a tractor all day, and then you’ll see why the 1100 comes with power steering standard and mComfort — the comfiest seat in its class. It offers outstanding support, featuring a superior form-fitting seat cushion and foldable armrests.

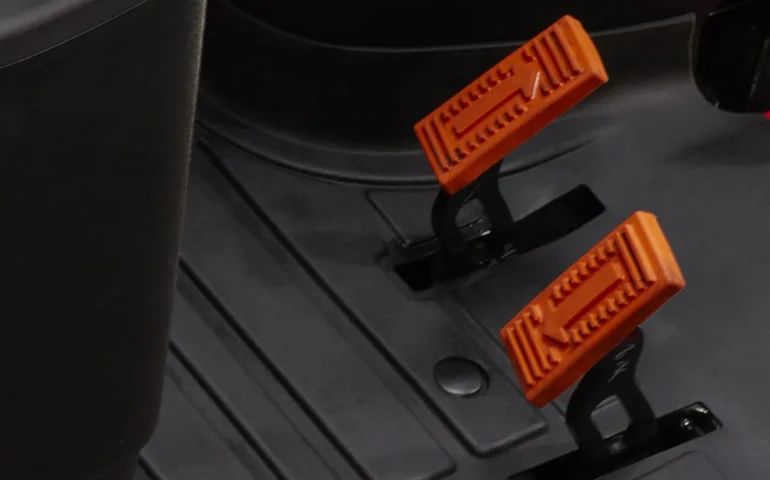

Our hydrostatic drive system (HST) eliminates gear shifting by safely engaging color-coded forward or reverse pedals. Combining HST with a super smooth joystick for loader-control makes fast and
efficient loader work.

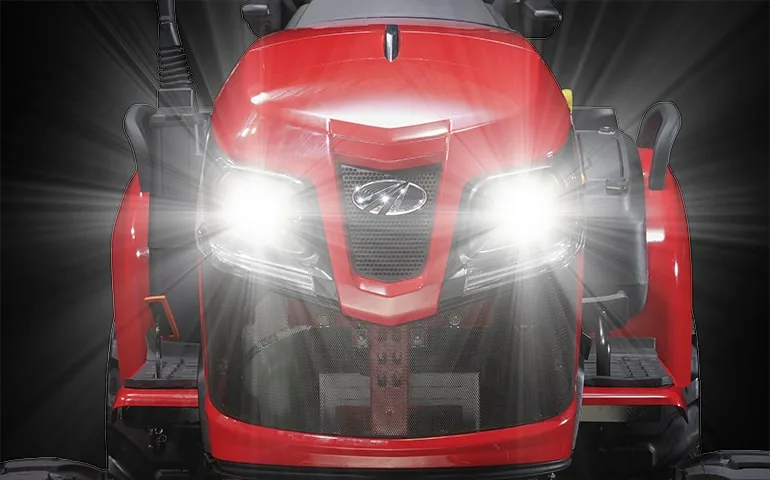

Using projector-style headlights for best-in-class output, we offer bright, white lighting for after-dark chores.
| Tractor Model | 1120 HST | 1120 HST Cab | 1126 HST | 1126 HST Cab |
|---|---|---|---|---|
| Engine type | Naturally Aspirated, Indirect Injection, Water Cooled Diesel | Naturally Aspirated, Indirect Injection, Water Cooled Diesel | Naturally Aspirated, Indirect Injection, Water Cooled Diesel | Naturally Aspirated, Indirect Injection, Water Cooled Diesel |
| Engine HP [kW] @ RPM | 20.1 (15) @ 2900 | 20.1 (15) @ 2900 | 25.3 (18.8) @ 2900 | 25.3 (18.8) @ 2900 |
| Displacement [in3 (cc)] | 67.2 (1102) | 67.2 (1102) | 67.2 (1102) | 67.2 (1102) |
| Number of cylinders | 3 | 3 | 3 | 3 |
| Fuel tank [Gal (L)] | 6.6 (25) | 6.6 (25) | 6.6 (25) | 6.6 (25) |
| Bore & stroke [in] | Bore : 3, Stroke : 3.2 | Bore : 3, Stroke : 3.2 | Bore : 3, Stroke : 3.2 | Bore : 3, Stroke : 3.2 |
| Tractor Model | 1120 HST | 1120 HST Cab | 1126 HST | 1126 HST Cab |
|---|---|---|---|---|
| Transmission type | HST – 2 range | HST – 2 range | HST – 2 range | HST – 2 range |
| Number of speeds | Infinite | Infinite | Infinite | Infinite |
| Clutch | N/A | N/A | N/A | N/A |
| Max speed (mph) | 7.3 | 7.3 | 7.3 | 7.3 |
| Brakes | Single pedal | Single pedal | Single pedal | Single pedal |
| Tractor Model | 1120 HST | 1120 HST Cab | 1126 HST | 1126 HST Cab |
|---|---|---|---|---|
| PTO type | Independent | Independent | Independent | Independent |
| Rear PTO RPM | 540 @ 2837 | 540 @ 2837 | 540 @ 2837 | 540 @ 2837 |
| Mid PTO RPM | 2500 @ 2837 | 2500 @ 2837 | 2500 @ 2837 | 2500 @ 2837 |
| PTO HP (kW) | 14 (10.4) | 14 (10.4) | 19.2 (14.3) | 19.2 (14.3) |
| Tractor Model | 1120 HST | 1120 HST Cab | 1126 HST | 1126 HST Cab |
|---|---|---|---|---|
| Type | Open center with Position Control | Open center with Position Control | Open center with Position Control | Open center with Position Control |
| Maximum total flow [GPM (L/min)] | 11.2 | 11.2 | 11.2 | 11.2 |
| Total pump output, main (GPM) | 7.4 | 7.4 | 7.4 | 7.4 |
| Total pump output, steering (GPM) | 3.8 | 3.8 | 3.8 | 3.8 |
| 3-Point hitch | Cat I | Cat I | Cat I | Cat I |
| 3- Point hitch lift capacity @24" aft [lb (kg)] | 770 | 770 | 770 | 770 |
| Tractor Model | 1120 HST | 1120 HST Cab | 1126 HST | 1126 HST Cab |
|---|---|---|---|---|
| Battery | 650 CCA, 52 AH | 651 CCA, 52 AH | 652 CCA, 52 AH | 653 CCA, 52 AH |
| Alternator | 55 A | 56 A | 57 A | 58 A |
| Tractor Model | 1120 HST | 1120 HST Cab | 1126 HST | 1126 HST Cab |
|---|---|---|---|---|
| Overall length [in (mm)] | 100.4 (2550) | 100.4 (2550) | 100.4 (2550) | 100.4 (2550) |
| Wheelbase [in (mm)] | 55.1 (1400) | 55.1 (1400) | 55.1 (1400) | 55.1 (1400) |
| Turning radius [ft (m)] | 7.2 (2.2) | 7.2 (2.2) | 7.2 (2.2) | 7.2 (2.2) |
| Overall width [in (mm)] | 46.3 (1177) | 46.3 (1177) | 46.3 (1177) | 46.3 (1177) |
| Overall height [in (mm)] | OS 86.6 (2200) Cab 79 (2007) | OS 86.6 (2200) Cab 79 (2007) | OS 86.6 (2200) Cab 79 (2007) | OS 86.6 (2200) Cab 79 (2007) |
| Minimum ground clearance [in (mm)] | 6.6 (169) | 6.6 (169) | 6.6 (169) | 6.6 (169) |
| Weight [lb (kg)] | 1573 | 1573 | 1573 | 1573 |
| Tractor Model | 1120 HST | 1120 HST Cab | 1126 HST | 1126 HST Cab |
|---|---|---|---|---|
| IND [Front/Rear] | 18×8.5-10 / 26×12-12 | 18×8.5-10 / 26×12-12 | 18×8.5-10 / 26×12-12 | 18×8.5-10 / 26×12-12 |
| TURF [Front/Rear] | 16×7.5-10 / 24×12-12 | 16×7.5-10 / 24×12-12 | 16×7.5-10 / 24×12-12 | 16×7.5-10 / 24×12-12 |
| Tractor Model | 1120 HST | 1120 HST Cab | 1126 HST | 1126 HST Cab |
|---|---|---|---|---|
| Model number | L11 | L11 | L11 | L11 |
| Max lift height (in) | 73.2 | 73.2 | 73.2 | 73.2 |
| Loader lift capacity [lb (kg)] | 793.6 (360) | 793.6 (360) | 793.6 (360) | 793.6 (360) |
| Digging depth (in) | 3.14 | 3.14 | 3.14 | 3.14 |
