4540
Horsepower 41 HP
Transmission Gear
3-Point Hitch Lift Capacity 3527 lbs
Loader lift capacity 3527 lbs
Build Your Own Get A Quote

Save up to $2,500!

7-Year Limited Powertrain Warranty*

4550
Horsepower 48 HP
Transmission Gear
3-Point Hitch Lift Capacity 3527 lbs
Loader lift capacity 2866 lbs
Build Your Own Get A Quote

Save up to $2,500!

7-Year Limited Powertrain Warranty*

Top Features

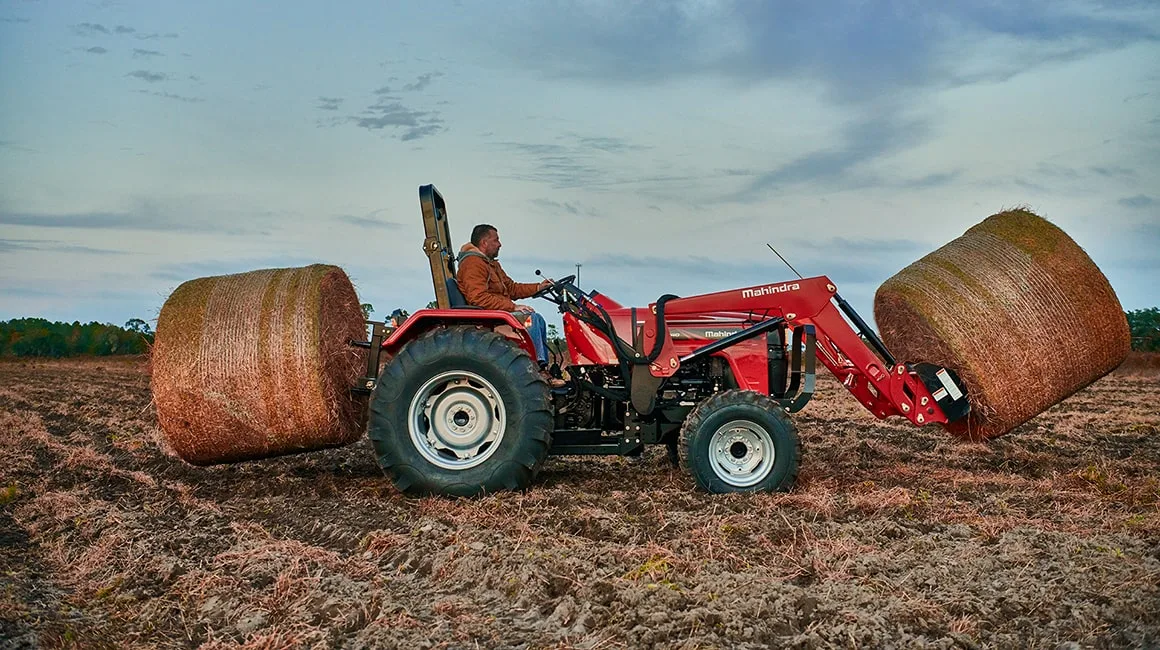

Implements

Get your work done with Mahindra implements that are perfect to handle any job you need to tackle.

Attachments

Built tough and built to last like our Tractors, Mahindra attachments handle the toughest tasks to keep working smarter; not harder.

Specs

Tractor Model4540 4WD4550 4WD

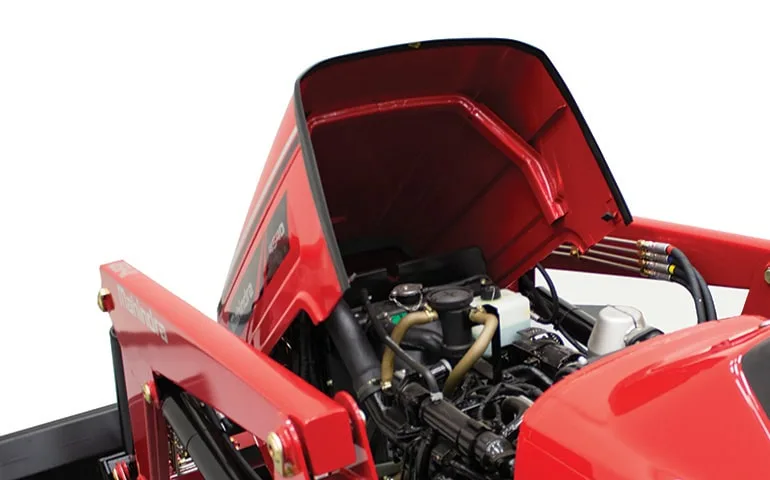

Engine type Four-stroke, direct-injection water-cooled, diesel Four-stroke, direct-injection water-cooled, diesel
Engine HP [kW] @ RPM41 (30.5) @ 2300 (T4)48 (35.8) @ 2300 (T4)
Displacement [in3 (cc)]166.7 (2732)166.7 (2732)
Number of cylinders44
Fuel tank [Gal (L)]14.55 (55)14.55 (55)
Bore & stroke [in]3.5 x 4.33.5 x 4.3

Tractor Model4540 4WD4550 4WD

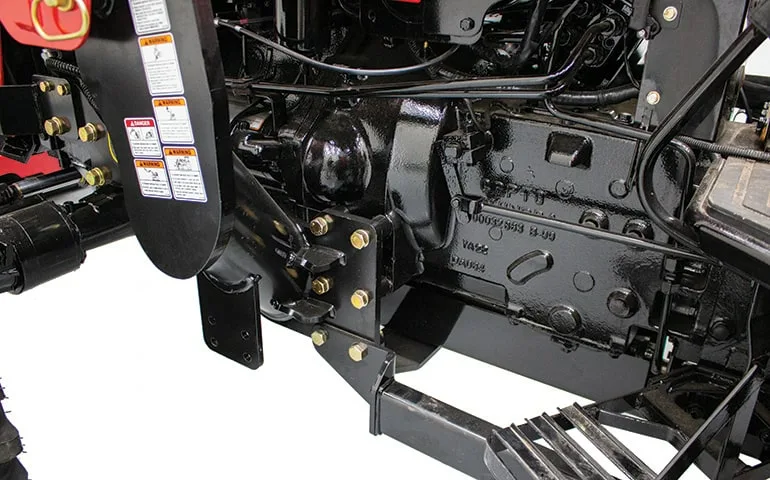

Transmission typeFull constant meshFull constant mesh
Number of speeds8F / 2R8F / 2R
ClutchDualDual
Max speed (mph)17.617.6
BrakesFully enclosed dry discFully enclosed dry disc

Tractor Model4540 4WD4550 4WD
PTO type Live Live
Rear PTO RPM540 @ 2058540 @ 2058
PTO HP (kW) 31 (23.1)38 (28.3)

Tractor Model4540 4WD4550 4WD
Type Open CenterOpen Center
Maximum total flow [GPM (L/min)]8.7 (32.9)8.7 (32.9)

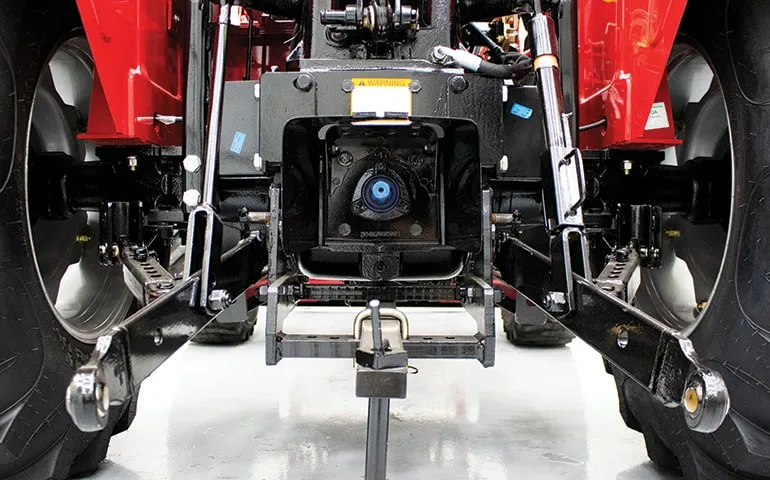

3-Point hitch Category 1 and 2 adjustable, with telescopic stabilizersCategory 1 and 2 adjustable, with telescopic stabilizers
3- Point hitch lift capacity @24" aft [lb (kg)]3527 (1600)3527 (1600)

Tractor Model4540 4WD4550 4WD
Battery12 volt, 96 amp hours12 volt, 96 amp hours
Alternator12 volt, 45 A12 volt, 45 A

Tractor Model4540 4WD4550 4WD
Overall length [in (mm)]128.9 (3275)127 (3227)
Wheelbase [in (mm)]76.7 (1948)76.7 (1948)
Turning radius [ft (m)]10.5 (3.2)10.5 (3.2)
Overall width [in (mm)]82.6 (2098)82.6 (2098)
Overall height [in (mm)]92.6 (2352)93.7 (2380)
Minimum ground clearance [in (mm)]8.7 (218)8.7 (218)
Weight [lb (kg)]5192 (2355)5192 (2355)

Tractor Model4540 4WD4550 4WD
AG [Front/Rear]9.5 x 16 / 12.4 x 289.5 x 16 / 12.4 x 28
IND [Front/Rear]12 x 16.5 / 16.9 x 2412 x 16.5 / 16.9 x 24

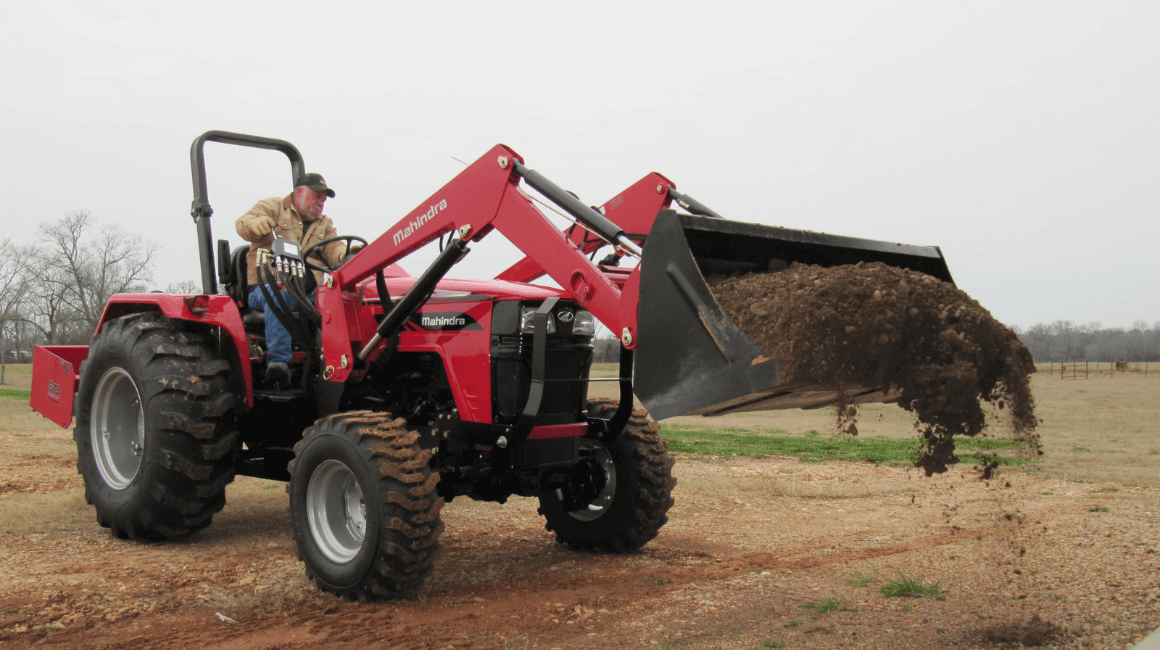

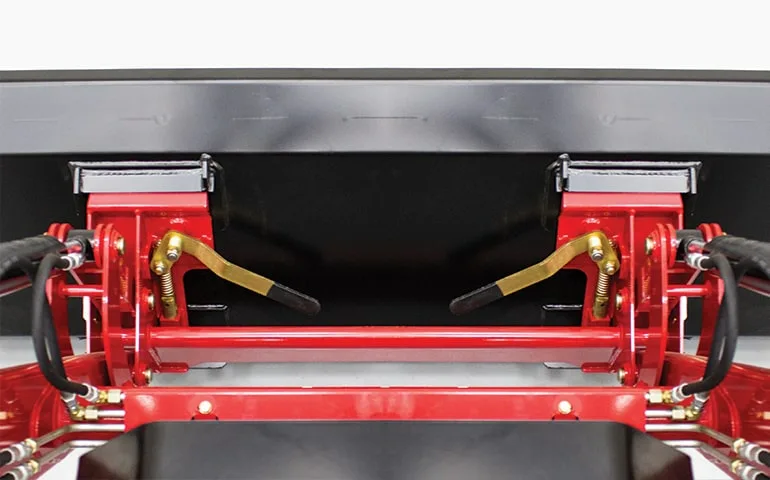

Tractor Model4540 4WD4550 4WD
Model number4550-4L4550-4L
Max lift height (in)116.6116.6
Loader lift capacity [lb (kg)]2866 (1303)2866 (1303)
Digging depth (in)3.83.8
