| Horsepower | 23 HP |
| Transmission | HST – 3 Range |
| 3-Point Hitch Lift Capacity | 1760 lbs |
| Loader lift capacity | 1474 lbs |
| Horsepower | 25.3 HP |
| Transmission | HST – 3 Range |
| 3-Point Hitch Lift Capacity | 1760 lbs |
| Loader lift capacity | 1474 lbs |

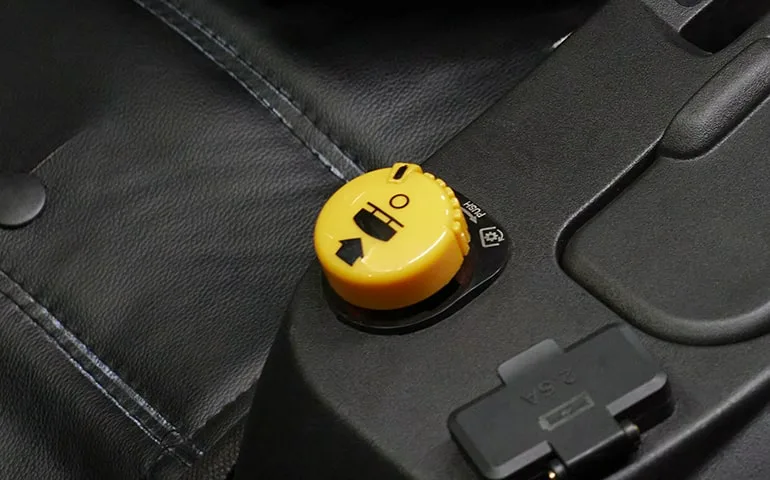

Electronic PTO engagement for your mid and rear implements is ideal for those with arthritis and is designed to prevent accidental activation, improving operator safety.

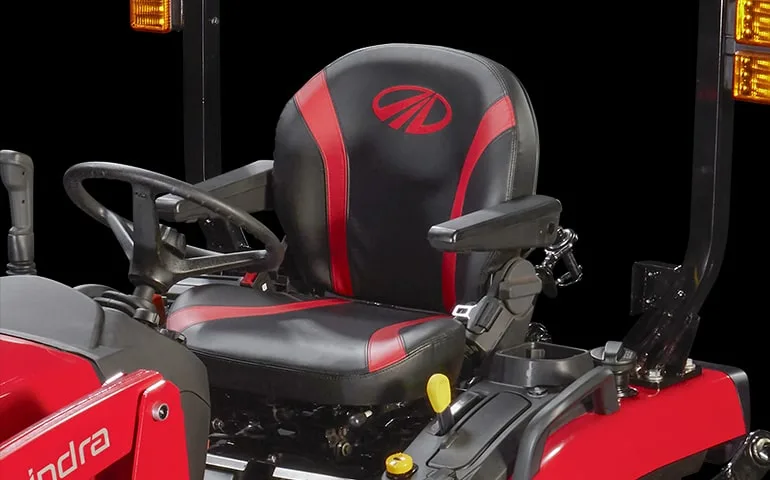

Try sitting on a tractor all day, and then you’ll see why the 2100 comes with power steering standard and mComfort — the comfiest, form-fitting seat in its class. It offers outstanding support, featuring a superior form-fitting seat cushion and foldable armrests. Add a climatized cab for year-round comfort.

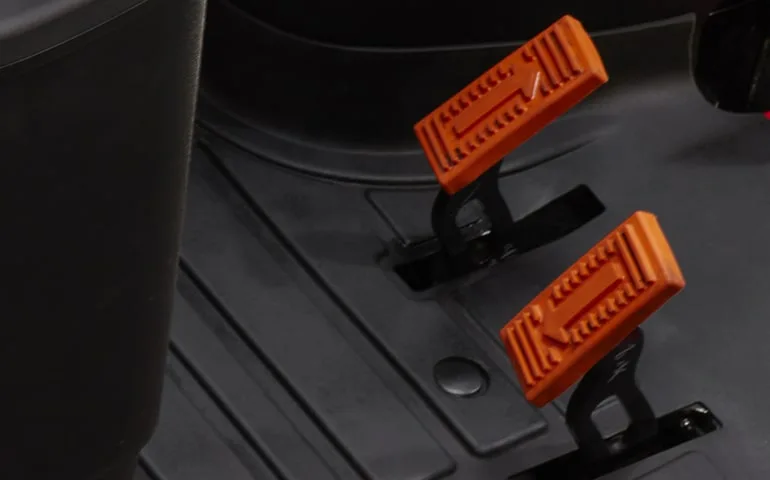

Our hydrostatic drive system (HST) eliminates gear shifting by safely engaging color-coded forward or reverse pedals. Combining HST with a super smooth joystick for loader-control makes fast and
efficient loader work.

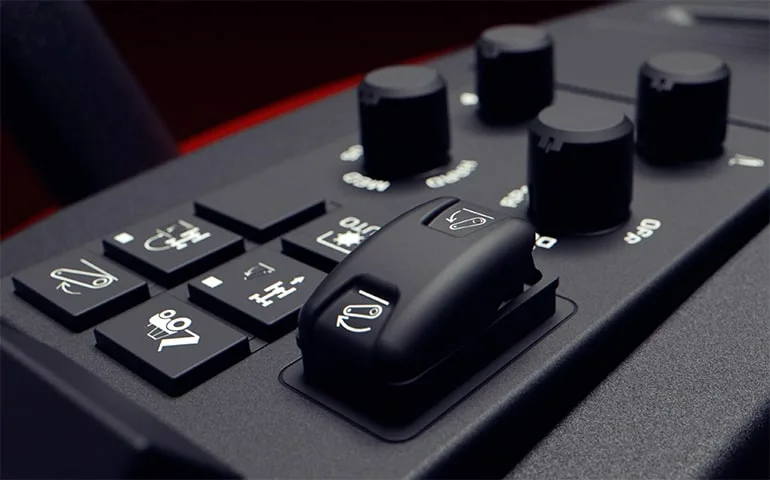

For Cab models: While other brands use levers, we switched to electronic 3-point hitch controls to improve chore efficiency and overall productivity. Now, it’s easy to adjust lift speed, draft, depth, auto-raise on turns, & more.
| Tractor Model | 2123 HST | 2126 HST | 2126 HST Cab |
|---|---|---|---|
| Engine type | Naturally Aspirated, Indirect Injection, Water Cooled Diesel | Naturally Aspirated, Indirect Injection, Water Cooled Diesel | Naturally Aspirated, Indirect Injection, Water Cooled Diesel |
| Engine HP [kW] @ RPM | 22.9 (17.1) @ 2500 | 25.3 (18.9) @ 2700 | 25.3 (18.9) @ 2700 |
| Displacement [in3 (cc)] | 80.4 (1318) | 80.4 (1318) | 80.4 (1318) |
| Number of cylinders | 3 | 3 | 3 |
| Fuel tank [Gal (L)] | 5.8 (22) | 5.8 (22) | 5.8 (22) |
| Bore & stroke [in] | Bore : 3.1, Stroke: 3.6 | Bore : 3.1, Stroke: 3.6 | Bore : 3.1, Stroke: 3.6 |
| Tractor Model | 2123 HST | 2126 HST | 2126 HST Cab |
|---|---|---|---|
| Transmission type | HST – 3 range | HST – 3 range | HST – 3 range |
| Number of speeds | Infinite | Infinite | Infinite |
| Clutch | N/A | N/A | N/A |
| Max speed (mph) | 11.2 | 11.2 | 11.2 |
| Brakes | Dual pedal | Dual pedal | Dual pedal |
| Tractor Model | 2123 HST | 2126 HST | 2126 HST Cab |
|---|---|---|---|
| PTO type | Independent | Independent | Independent |
| Rear PTO RPM | 540 | 540 | 540 |
| Mid PTO RPM | 2500 @ 2500 | 2500 @ 2500 | 2500 @ 2500 |
| PTO HP (kW) | 16.8 (12.5) | 19.2 (14.3) | 19.2 (14.3) |
| Tractor Model | 2123 HST | 2126 HST | 2126 HST Cab |
|---|---|---|---|
| Type | Open center with Position Control | Open center with Position Control | Open center with Position Control |
| Maximum total flow [GPM (L/min)] | 11.2 | 11.2 | 11.2 |
| Total pump output, main (GPM) | 6.3 | 6.3 | 6.3 |
| Total pump output, steering (GPM) | 5 | 5 | 5 |
| 3-Point hitch | Cat I | Cat I | Cat I |
| 3- Point hitch lift capacity @24" aft [lb (kg)] | 1760 | 1760 | 1760 |
| Tractor Model | 2123 HST | 2126 HST | 2126 HST Cab |
|---|---|---|---|
| Battery | 630 CCA, 52 AH | 630 CCA, 52 AH | 630 CCA, 52 AH |
| Alternator | 55 A | 55 A | 55 A |
| Tractor Model | 2123 HST | 2126 HST | 2126 HST Cab |
|---|---|---|---|
| Overall length [in (mm)] | 112.7 (2863) | 112.7 (2863) | 112.7 (2863) |
| Wheelbase [in (mm)] | 61.4 (1560) | 61.4 (1560) | 61.4 (1560) |
| Turning radius [ft (m)] | 7.6 (2.3) | 7.6 (2.3) | 7.6 (2.3) |
| Overall width [in (mm)] | 54.4 (1383) | 54.4 (1383) | 54.4 (1383) |
| Overall height [in (mm)] | 95.5 (2426) | 95.5 (2426) | 87.5 (2223) |
| Minimum ground clearance [in (mm)] | 13.4 (340) | 13.4 (340) | 13.4 (340) |
| Weight [lb (kg)] | 2101 | 2101 | 2607 |
| Tractor Model | 2123 HST | 2126 HST | 2126 HST Cab |
|---|---|---|---|
| IND [Front/Rear] | 8.5×14 / 12.4-16 | 8.5×14/12.4-16 | 8.5×14 / 12.4-16 |
| TURF [Front/Rear] | 8.5×14 / 13.5-16 | 8.5×14/ 13.5-16 | 8.5×14 / 13.5-16 |
| Tractor Model | 2123 HST | 2126 HST | 2126 HST Cab |
|---|---|---|---|
| Model number | L21 | L21 | L21 |
| Max lift height (in) | 82.44 | 82.44 | 82.44 |
| Loader lift capacity [lb (kg)] | 1389 (630) | 1389 (630) | 1389 (630) |
| Digging depth (in) | 3.14 | 3.14 | 3.14 |
