6065 PST
Horsepower 62 HP
Transmission Power Shuttle
3-Point Hitch Lift Capacity 4840 lbs
Loader lift capacity 3609 lbs
Build Your Own Get A Quote

Save up to $4,000!

5-Year Limited Powertrain Warranty*

6075 PST
Horsepower 71 HP
Transmission Power Shuttle
3-Point Hitch Lift Capacity 4840 lbs
Loader lift capacity 3609 lbs
Build Your Own Get A Quote

Save up to $4,000!

5-Year Limited Powertrain Warranty*

Offers

Top Features

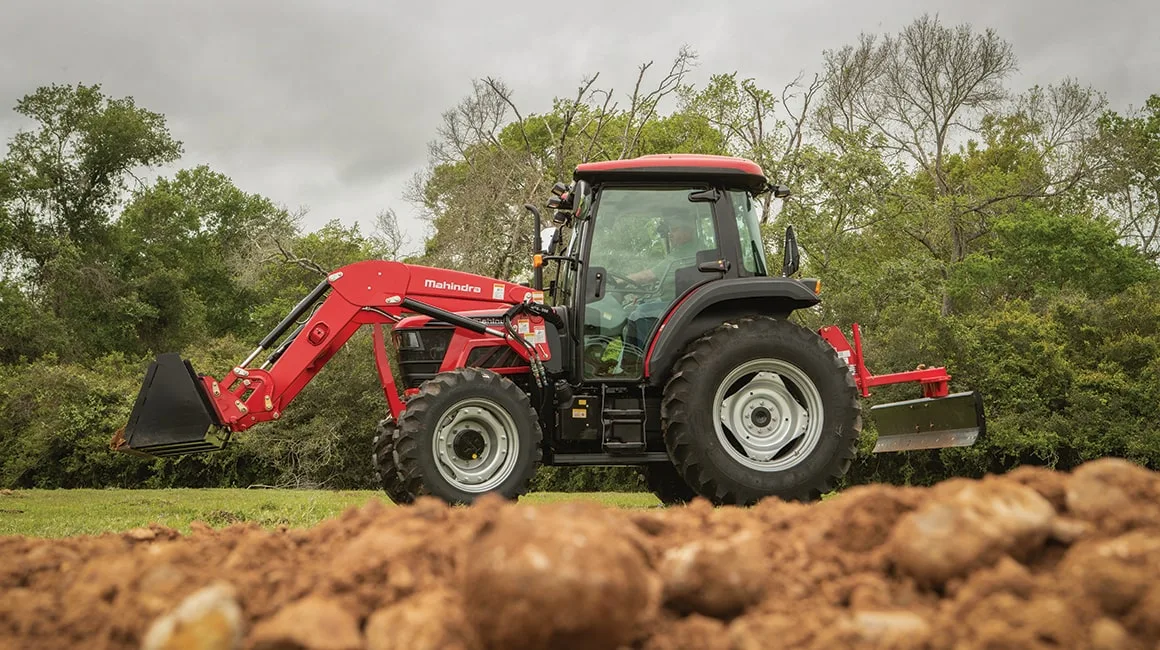

Implements

Get your work done with Mahindra implements that are perfect to handle any job you need to tackle.

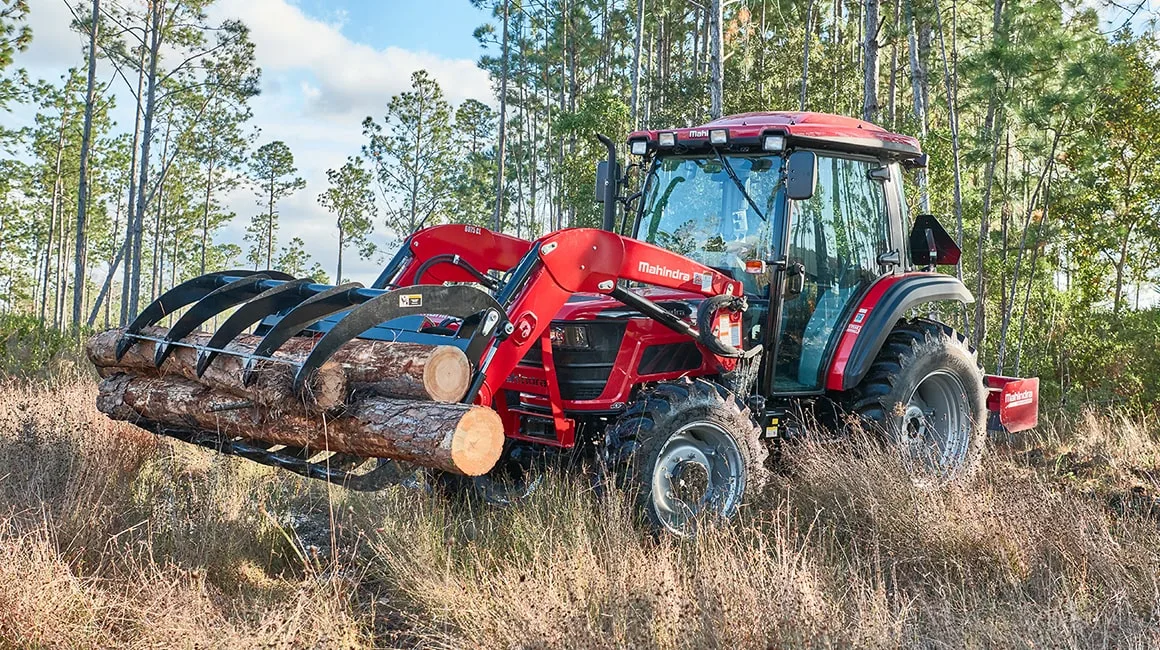

Attachments

Built tough and built to last like our Tractors, Mahindra attachments handle the toughest tasks to keep working smarter; not harder.

Specs

Tractor Model6065 Power Shuttle6065 Power Shuttle Cab6075 Power Shuttle6075 Power Shuttle Cab
Engine typeFour-stroke, Turbocharged, Intercooled, Direct Injection, Water Cooled Diesel EngineFour-stroke, Turbocharged, Intercooled, Direct Injection, Water Cooled Diesel EngineFour-stroke, Turbocharged, Intercooled, Direct Injection, Water Cooled Diesel EngineFour-stroke, Turbocharged, Intercooled, Direct Injection, Water Cooled Diesel Engine
Engine HP [kW] @ RPM62 (46.2) @ 210062 (46.2) @ 210071 (52.9) @ 210071 (52.9) @ 2100
Displacement [in3 (cc)]161.7 (2650)161.7 (2650)161.7 (2650)161.7 (2650)
Number of cylinders3334
Fuel tank [Gal (L)]23.8 (90.0)23.8 (90.0)23.8 (90.0)23.8 (90.0)
Bore & stroke [in]Bore: 3.78, Stroke: 4.8Bore: 3.78, Stroke: 4.8Bore: 3.78, Stroke: 4.8Bore: 3.78, Stroke: 4.8

Tractor Model6065 Power Shuttle6065 Power Shuttle Cab6075 Power Shuttle6075 Power Shuttle Cab
Transmission typeFull Synchro Mesh with Forward / Reverse Power Shuttle and Constant Mesh RangeFull Synchro Mesh with Forward / Reverse Power Shuttle and Constant Mesh RangeFull Synchro Mesh with Forward / Reverse Power Shuttle and Constant Mesh RangeFull Synchro Mesh with Forward / Reverse Power Shuttle and Constant Mesh Range
Number of speeds15F / 15R15F / 15R15F / 15R15F / 15R
ClutchPower Shuttle with Torsional Damper (wet)Power Shuttle with Torsional Damper (wet)Power Shuttle with Torsional Damper (wet)Power Shuttle with Torsional Damper (wet)
Max speed (mph)21.421.421.421.4
Brakes Oil Immersed Brakes, Disc Diameter — 8.75 in. OD (222 mm), Ball and Ramp Type Oil Immersed Brakes, Disc Diameter — 8.75 in. OD (222 mm), Ball and Ramp TypeOil Immersed Brakes, Disc Diameter — 8.75 in. OD (222 mm), Ball and Ramp TypeOil Immersed Brakes, Disc Diameter — 8.75 in. OD (222 mm), Ball and Ramp Type

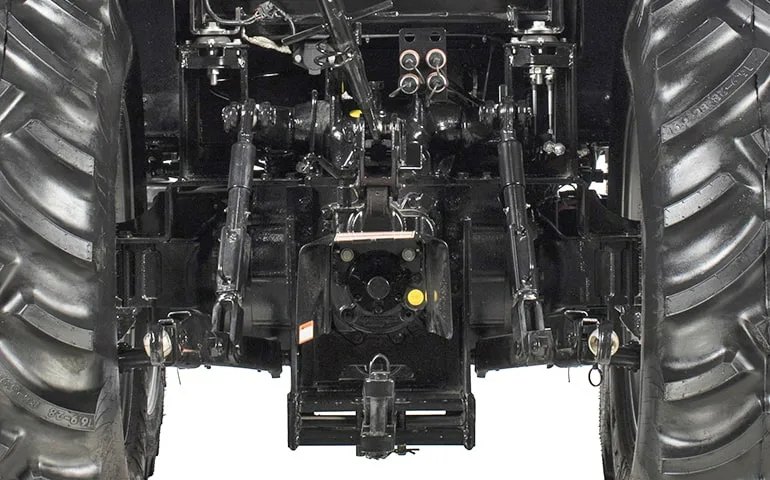

Tractor Model6065 Power Shuttle6065 Power Shuttle Cab6075 Power Shuttle6075 Power Shuttle Cab
PTO type2-Speed Independent Single Lever PTO2-Speed Independent Single Lever PTO2-Speed Independent Single Lever PTO2-Speed Independent Single Lever PTO
Rear PTO RPM540/540E540/540E540/540E540/540E
PTO HP (kW)53.5 (39.9)53.5 (39.9)61 (45.5)61 (45.5)

Tractor Model6065 Power Shuttle6065 Power Shuttle Cab6075 Power Shuttle6075 Power Shuttle Cab

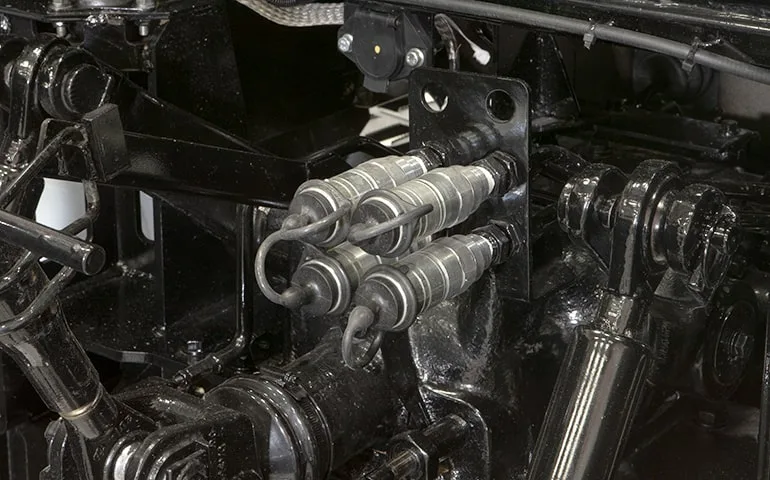

TypeOpen Center with Position and Draft Control, Telescoping Stabilizers and Flex LinksOpen Center with Position and Draft Control, Telescoping Stabilizers and Flex LinksOpen Center with Position and Draft Control, Telescoping Stabilizers and Flex LinksOpen Center with Position and Draft Control, Telescoping Stabilizers and Flex Links
Maximum total flow [GPM (L/min)]15.7 (59.4)15.7 (59.4)15.7 (59.4)15.7 (59.4)
Total pump output, main (GPM)11.111.111.111.1
Total pump output, steering (GPM)4.64.64.64.6
3-Point hitchCAT I & IICAT I & IICAT I & IICAT I & II
3- Point hitch lift capacity @24" aft [lb (kg)]4840 (2195)4840 (2195)4840 (2195)4840 (2195)

Tractor Model6065 Power Shuttle6065 Power Shuttle Cab6075 Power Shuttle6075 Power Shuttle Cab
Battery12 V, 925 CCA12 V, 925 CCA12 V, 925 CCA12 V, 925 CCA
Alternator12 V, 55 A [External Fan]12 V, 140 A [Internal Fan] 12 V, 55 A [External Fan] 12 V, 140 A [Internal Fan]

Tractor Model6065 Power Shuttle6065 Power Shuttle Cab6075 Power Shuttle6075 Power Shuttle Cab
Overall length [in (mm)]146.9 (3731)146.9 (3731)146.9 (3731)146.9 (3731)
Wheelbase [in (mm)]84.7 (2151.3)87.4 (2219)87.4 (2219)87.4 (2219)
Turning radius [ft (m)]12.4 (3.7)12.4 (3.7)12.4 (3.7)12.4 (3.7)
Overall width [in (mm)]73.2 (1859.2)82.68 (2100)78.74 (1999)82.68 (2100)
Overall height [in (mm)]104 (2641)115 (2921)105 (2667)115 (2921)
Minimum ground clearance [in (mm)]12.2 (309)14.1 (358)14.1 (358)14.1 (358)
Weight [lb (kg)]6746 (3059)7495 (3399)6746 (3059)7495 (3399)

Tractor Model6065 Power Shuttle6065 Power Shuttle Cab6075 Power Shuttle6075 Power Shuttle Cab
AG [Front/Rear]11.2 x 24 / 16.9 x 3011.2 x 24 / 16.9 x 3011.2 x 24 / 16.9 x 3011.2 x 24 / 16.9 x 30
IND [Front/Rear]43 x 16-20 / 18.4-2843 x 16-20 / 18.4-2843 x 16-20 / 18.4-2843 x 16-20 / 18.4-28

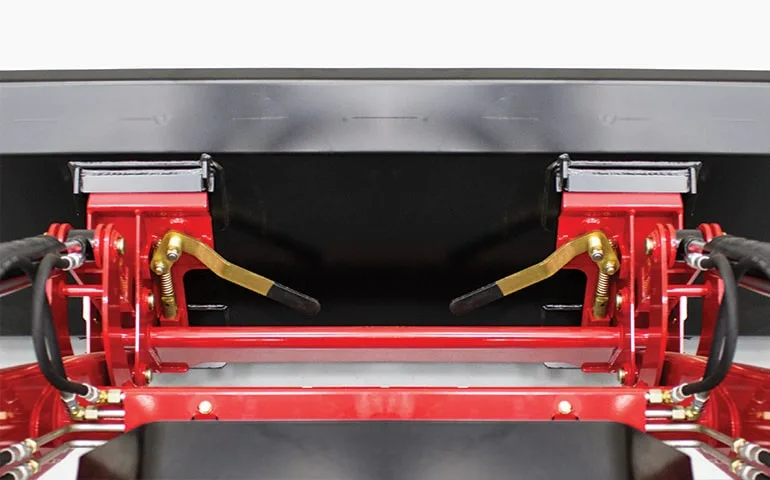

Tractor Model6065 Power Shuttle6065 Power Shuttle Cab6075 Power Shuttle6075 Power Shuttle Cab
Model number6075-4L6075-CL6075-4L6075-CL
Max lift height (in)133133133133
Loader lift capacity [lb (kg)]3609 (1614)3609 (1614)3609 (1614)3609 (1614)
Digging depth (in)5.85.85.85.8
