Max 26 XLT HST
Horsepower 25.9 HP
Transmission Shuttle & HST
3-Point Hitch Lift Capacity 2315 lbs
Loader lift capacity 1402 lbs
Build Your Own Get A Quote

Save up to $3,500!

7-Year Limited Powertrain Warranty*

Offers

Top Features

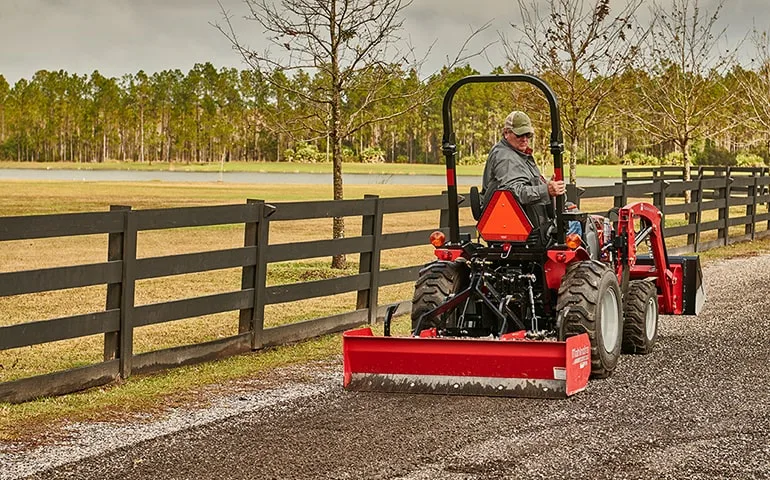

Implements

With value-packed features, Mahindra implements are built to be as tough as our tractors. We overbuild them for years of uninterrupted performance so you can focus on transforming your property into the land you love!

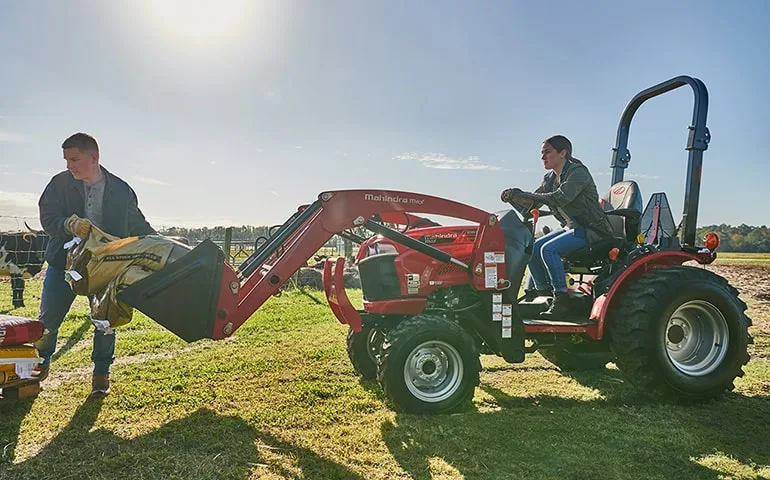

Attachments

Like our tractors, Mahindra attachments are engineered to tackle the most demanding jobs. They add versatility, too. No need for a separate backhoe or a riding mower. We have every solution to meet your unique needs, all in one tractor.

Specs

Tractor ModelMax 26 XLT ShuttleMax 26 XLT HST

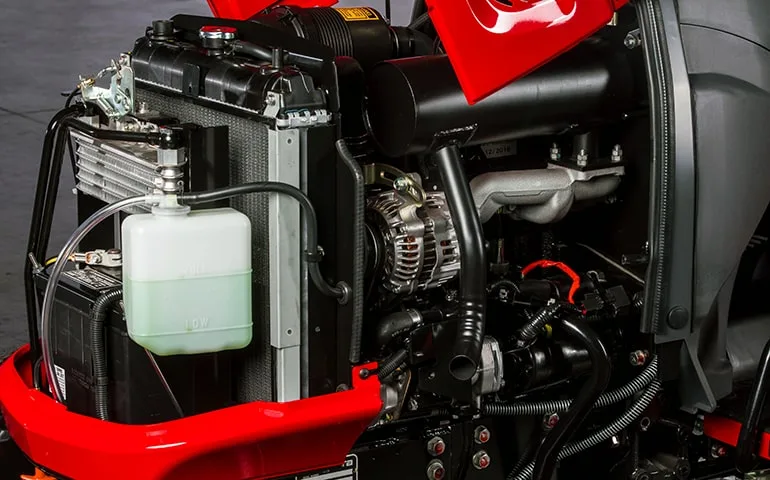

Engine typeFour-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel EngineFour-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
Engine HP [kW] @ RPM25.9 (19.3) @ 250025.9 (19.3) @ 2500
Displacement [in3 (cc)]80.4 (1318)80.4 (1318)
Number of cylinders33
Fuel tank [Gal (L)]6.1 (23)6.1 (23)
Bore & stroke [in]3.1 x 3.63.1 x 3.6

Tractor ModelMax 26 XLT ShuttleMax 26 XLT HST
Transmission typeSynchromesh on Shuttle (Forward-Reverse Position) and main Gear Shift of constant meshHST – 2 ranges
Number of speeds8F / 8RInfinite
ClutchDry-Single Dry-Single
Max speed (mph)10.49.3
BrakesWet DiscWet Disc

Tractor ModelMax 26 XLT ShuttleMax 26 XLT HST
PTO type TransLive
Rear PTO RPM 540 @ 2376540 @ 2376
Mid PTO RPM 2000 (Opt.) @ 25262000 (Opt.) @ 2526
PTO HP (kW) 21.7 (16.2)20.2 (15)

Tractor ModelMax 26 XLT ShuttleMax 26 XLT HST
TypeOpen CenterOpen Center
Maximum total flow [GPM (L/min)]8.5 (32.2)8.5 (32.2)
Total pump output, main (GPM)5.85.8
Total pump output, steering (GPM)2.72.7

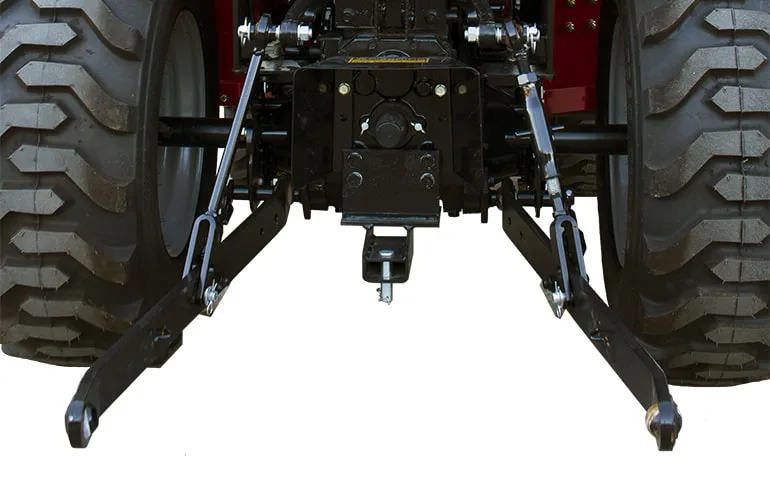

3-Point hitchCAT ICAT I
3- Point hitch lift capacity @24" aft [lb (kg)]2315 (1052)2315 (1052)

Tractor ModelMax 26 XLT ShuttleMax 26 XLT HST
Battery12 V, 450 CCA12 V, 450 CCA
Alternator12 V, 50 A12 V, 50 A

Tractor ModelMax 26 XLT ShuttleMax 26 XLT HST
Overall length [in (mm)]110 (2795)110 (2795)
Wheelbase [in (mm)]63.2 (1605)63.2 (1605)
Turning radius [ft (m)]7.2 (2.2)7.2 (2.2)
Overall width [in (mm)]54.3 (1380)54.3 (1380)
Overall height [in (mm)]84.3 (2140)84.3 (2140)
Minimum ground clearance [in (mm)]11.4 (290)11.4 (290)
Weight [lb (kg)]1896 (860)1973 (895)

Tractor ModelMax 26 XLT ShuttleMax 26 XLT HST
AG [Front/Rear] 7 – 12 / 9.5 – 16 7 – 12 / 9.5 – 16
IND [Front/Rear] 23 x 8.50-12 / 12-16.5 23 x 8.50-12 / 12-16.5
TURF [Front/Rear] 23 x 8.5-12 / 33 x 12.5-15 23 x 8.5-12 / 33 x 12.5-15

Tractor ModelMax 26 XLT ShuttleMax 26 XLT HST
Model numbermXLT-26LmXLT-26L
Max lift height (in)8585
Loader lift capacity [lb (kg)]1520 (691)1520 (691)
Digging depth (in)4.54.5
